602-05460, Type: 0,55D2MR3P31-5,4-2(136,16h6x40) - Planetroll United States Sales

Please Contact Us to Order to offer best price and delivery time for Planetroll - 602-05460, Type: 0,55D2MR3P31-5,4-2(136,16h6x40) Variable speed drive unit number, also you may ask some other model number is well. We can offer best price, and delivery time with wide products distribution network in United States Industrial products Market.

WE SELL ONLY ORIGINAL AND NEW PRODUCTS!

Our company is not an authorized distributor and manufacturer's representative of the brands shown on the website. Private brand names shown on this site and trademarks are the property of their respective owners

Important note: Although we Planetroll - Products are Onrion LLC not an authorized dealer. All rights are reserved by the manufacturers and their official partners.

Where can I buy 602-05460, Type: 0,55D2MR3P31-5,4-2(136,16h6x40) by Planetroll in United States?

You can purchase 602-05460, Type: 0,55D2MR3P31-5,4-2(136,16h6x40) by Planetroll from Onrion LLC. We serve customers across United States, offering competitive prices and reliable service.

What is the price of the 602-05460, Type: 0,55D2MR3P31-5,4-2(136,16h6x40)?

For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.

Who is the official distributor or seller of Planetroll in United States?

While we are not the official distributor or seller of Planetroll in United States, we source our products from reliable channels and offer you original Planetroll equipment at competitive prices.

How can I access 602-05460, Type: 0,55D2MR3P31-5,4-2(136,16h6x40) catalogs, user manuals, technical documents, and PDFs?

You can access catalogs, user manuals, and technical documents for 602-05460, Type: 0,55D2MR3P31-5,4-2(136,16h6x40) on our website. Visit our resources section or contact us directly for specific documents.

Do you provide technical support for 602-05460, Type: 0,55D2MR3P31-5,4-2(136,16h6x40)?

While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.

Technical specification

BRAND	Planetroll
Product	602-05460, Type: 0,55D2MR3P31-5,4-2(136,16h6x40)
Description	Variable speed drive unit
Internal code	ONR4014455
Weight	22
Custom code	85015100

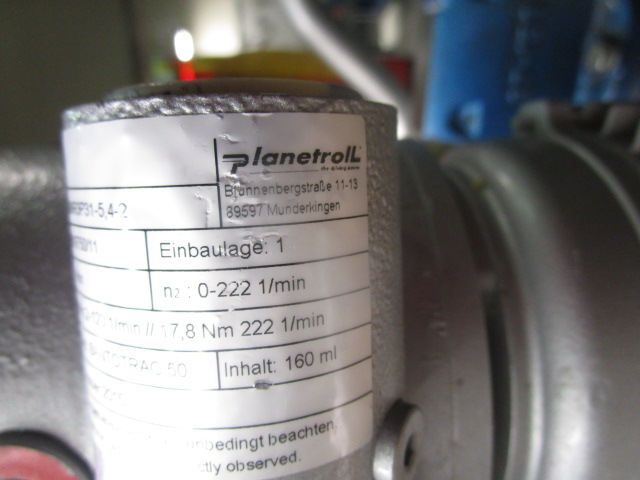

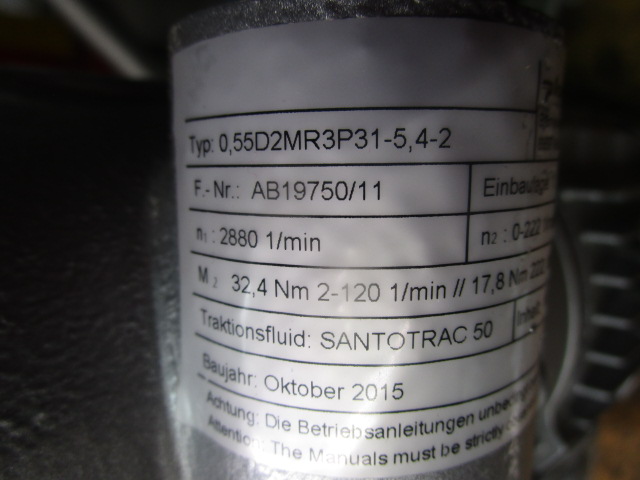

Technical specification	Variable speed drive unit planetroll Type 0,55D2MR3P31-5,4-2 (136,16h6x40) ================================= consisting of: --------------------- a) Special three-phase motor b) control gear "p l a r o m a s t e r" c) planetary gear Technical specifications ------------------------- Control element: right Design: B5 Installation position: 1 Speed range: 0 to approx. 222 1 / min (50 Hz network) Output torque: approx. 32.4 Nm from 2 to 120 rpm approx. 17.8 Nm at 222 rpm Drive components ------------------------------- 1. 501-00036 x 1 pcs drive side three-phase motor 0.55 kW, 2880/3440 rpm, 200-240 / 346-420 V, 50 Hz, 2.45 / 1.4 A, 200-254 / 346-440 V, 60 Hz, 2.35 / 1.35 A, IP 56, insulation class F, stainless steel, ON / OFF switch IP 55, 3m cable - 4x 1.5 square; Size 71, B14-105. 2. 302-01984 x 1 pcs Plaromaster variable speed gearbox type MR3 on the drive side: for motor mounting BG 71, B14-105 output side: B14-120, special output shaft Ø 16h6x24, attachment: planetary gear type P31 3. 302-01466 x 1 pcs Control element type HVK 5 for AR2-AR5 / MR3 + MR5: Handwheel (d0 = 50) with fine adjustment scale; Coarse scale 0 - 12, fine scale 0 - 100 4. 301-01283 x 1 pcs 1-stage planetary gear unit P31-2 (136) in flange design on the output side, reduction ratio i = 5.4 (Mmax.zul. = 80 Nm); B5 flange Ø136 / 120 / 94j6 (4x countersinking 6.6), output shaft Ø16h6 x 40. 5. 602-08879 x 1 pcs + Painting RAL 9006 white aluminum
